XLPE Medium Voltage Cable

The Medium Voltage Insulated power cables with insulation of cross-linked polyethylene (XLPE), also known as xlpe medium voltage cable（XLPE MV cable, is designed for transfer and distribute of electrical power with nominal voltage Uo/U 3.6/6kV, 6.35/11kV, 8.7/15kV, 12/20kV, 19/33kV, 26/35kV and frequency 50Hz in urban and district electrical networks and for electrical supply of transformer’s substations, small and medium industrial plants. It is suitable for use in distribution installations, electric power stations and industrial systems.

Product Catalog

Inquiry Now

+86 13513807403

[email protected]

Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Net Weight		Max. D.C. Resistance of Conductor at 20℃
Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	mm	mm	mm	mm	mm	kg/m	kg/m	Ω/km	Ω/km
25	6	2.5	0.12	1.5	17.6	0.34	0.49	1.2	0.727
35	7	2.5	0.12	1.5	18.5	0.39	0.6	0.868	0.524
50	8.3	2.5	0.12	1.6	20	0.46	0.74	0.641	0.387
70	9.7	2.5	0.12	1.6	21.5	0.55	0.96	0.443	0.268
95	11.3	2.5	0.12	1.7	23.3	0.66	1.23	0.32	0.193
120	13	2.5	0.12	1.7	24.8	0.77	1.48	0.253	0.153
150	14.6	2.5	0.12	1.8	26.4	0.87	1.77	0.206	0.124
185	15.9	2.5	0.12	1.8	28.1	1.01	2.13	0.164	0.0991
240	18.3	2.6	0.12	1.9	30.9	1.23	2.71	0.125	0.0754
300	20.4	2.8	0.12	2	33.6	1.48	3.32	0.1	0.0601
400	23.2	3	0.12	2.1	37	1.81	4.16	0.0778	0.047
500	26.4	3.2	0.12	2.2	41.1	2.24	5.27	0.0605	0.0366
630	30.1	3.2	0.12	2.3	45	2.73	6.62	0.0469	0.0283

Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Net Weight		Max. D.C. Resistance of Conductor at 20℃
Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	mm	mm	mm	mm	mm	kg/m	kg/m	Ω/km	Ω/km
25	6	3.4	0.12	1.5	19.4	0.4	0.55	1.2	0.727
35	6.9	3.4	0.12	1.6	20.5	0.45	0.66	0.868	0.524
50	8.2	3.4	0.12	1.6	21.8	0.52	0.8	0.641	0.387
70	9.7	3.4	0.12	1.7	23.5	0.62	1.03	0.443	0.268
95	11.3	3.4	0.12	1.7	25.1	0.73	1.3	0.32	0.193
120	12.8	3.4	0.12	1.8	26.8	0.85	1.56	0.253	0.153
150	14.2	3.4	0.12	1.8	28.2	0.95	1.85	0.206	0.124
185	15.9	3.4	0.12	1.9	30.1	1.1	2.22	0.164	0.0991
240	18.3	3.4	0.12	2	32.7	1.33	2.8	0.125	0.0754
300	20.4	3.4	0.12	2	34.8	1.54	3.39	0.1	0.0601
400	23.2	3.4	0.12	2.2	38	1.87	4.22	0.0778	0.047
500	26.4	3.4	0.12	2.2	41.5	2.26	5.29	0.0605	0.0366
630	30.1	3.4	0.12	2.4	45.6	2.78	6.67	0.0469	0.0283

Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Net Weight		Max. D.C. Resistance of Conductor at 20℃
Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	mm	mm	mm	mm	mm	kg/m	kg/m	Ω/km	Ω/km
25	6	4.5	0.12	1.6	21.8	0.48	0.63	1.2	0.727
35	6.9	4.5	0.12	1.7	22.9	0.54	0.75	0.868	0.524
50	8.2	4.5	0.12	1.7	24.2	0.61	0.89	0.641	0.387
70	9.7	4.5	0.12	1.8	25.9	0.72	1.13	0.443	0.268
95	11.3	4.5	0.12	1.8	27.5	0.84	1.4	0.32	0.193
120	12.8	4.5	0.12	1.9	29.2	0.96	1.67	0.253	0.153
150	14.2	4.5	0.12	1.9	30.6	1.06	1.96	0.206	0.124
185	15.9	4.5	0.12	2	32.5	1.22	2.34	0.164	0.0991
240	18.3	4.5	0.12	2.1	35.1	1.46	2.93	0.125	0.0754
300	20.4	4.5	0.12	2.1	37.2	1.68	3.52	0.1	0.0601
400	23.2	4.5	0.12	2.2	40.2	2	4.35	0.0778	0.047
500	26.4	4.5	0.12	2.3	43.9	2.43	5.45	0.0605	0.0366
630	30.1	4.5	0.12	2.4	47.8	2.93	6.83	0.0469	0.0283

Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Net Weight		Max. D.C. Resistance of Conductor at 20℃
Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	mm	mm	mm	mm	mm	kg/m	kg/m	Ω/km	Ω/km
25
35	6.9	5.5	0.12	1.7	24.9	0.62	0.83	0.868	0.524
50	8.2	5.5	0.12	1.8	26.4	0.7	0.98	0.641	0.387
70	9.7	5.5	0.12	1.8	27.9	0.8	1.21	0.443	0.268
95	11.3	5.5	0.12	1.9	29.7	0.94	1.5	0.32	0.193
120	12.8	5.5	0.12	1.9	31.2	1.05	1.77	0.253	0.153
150	14.2	5.5	0.12	2	32.8	1.17	2.07	0.206	0.124
185	15.9	5.5	0.12	2	34.5	1.33	2.45	0.164	0.0991
240	18.3	5.5	0.12	2.1	37.1	1.57	3.04	0.125	0.0754
300	20.4	5.5	0.12	2.2	39.4	1.81	3.66	0.1	0.0601
400	23.2	5.5	0.12	2.3	42.4	2.14	4.49	0.0778	0.047
500	26.4	5.5	0.12	2.4	46.1	2.58	5.61	0.0605	0.0366
630	30.1	5.5	0.12	2.4	49.8	3.1	6.99	0.0469	0.0283

Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Approx. Net Weight		Max. D.C. Resistance of Conductor at 20℃
Normal Cross Section of Conductor	Normal Diameter of Conductor	Normal Thickness of Insulation	Normal Thickness of Copper Tape	Normal Thickness of Outer Sheath	Approx. Overall Dia.	Al Conductor	Cu Conductor	Al Conductor	Cu Conductor
mm2	mm	mm	mm	mm	mm	kg/m	kg/m	Ω/km	Ω/km
25
35
50	8.2	8	0.12	2	31.8	0.95	1.23	0.641	0.387
70	9.7	8	0.12	2	33.3	1.07	1.47	0.443	0.268
95	11.3	8	0.12	2.1	35.1	1.21	1.78	0.32	0.193
120	12.8	8	0.12	2.1	36.6	1.34	2.05	0.253	0.153
150	14.2	8	0.12	2.2	38.2	1.47	2.37	0.206	0.124
185	15.9	8	0.12	2.2	39.9	1.64	2.76	0.164	0.0991
240	18.3	8	0.12	2.3	42.5	1.9	3.37	0.125	0.0754
300	20.4	8	0.12	2.4	44.8	2.16	4.01	0.1	0.0601
400	23.2	8	0.12	2.4	47.6	2.52	4.87	0.0778	0.047
500	26.4	8	0.12	2.5	51.3	2.98	6.01	0.0605	0.0366
630	30.1	8	0.12	2.6	55.2	3.54	7.43	0.0469	0.0283

Show more +

XLPE Medium Voltage Cable

Specifications of XLPE Medium Voltage Cable

Related Products

Low Voltage XLPE Cable

Armoured Xlpe Medium Voltage Cable

600V Duplex Conductor URD Cable

NYY N2XY NAYY NA2XY Cable

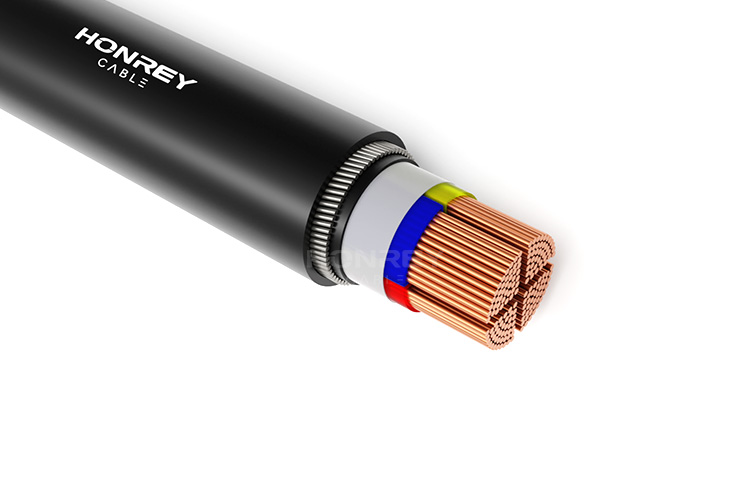

PVC Insulated And Sheathed Cable
